BOLTLESS STEEL SHELVING

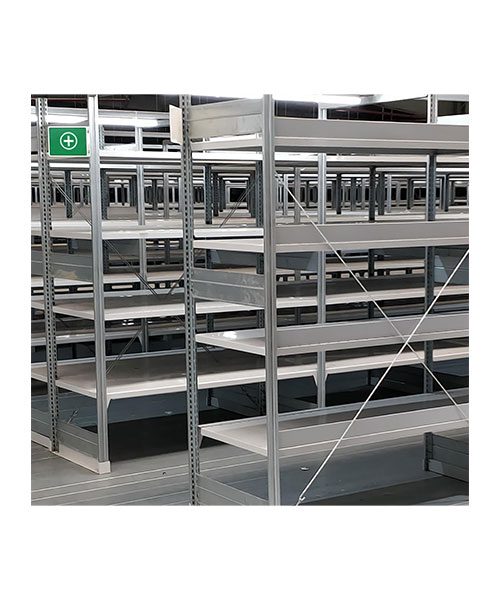

One of the most popular storage solutions that we offer is our Boltless Steel Shelving, with a wide range of sizes, capacities and design layout options, it has rapidly become one of the most versatile storage solutions within our industry, is perfect for both warehouse and office applications.

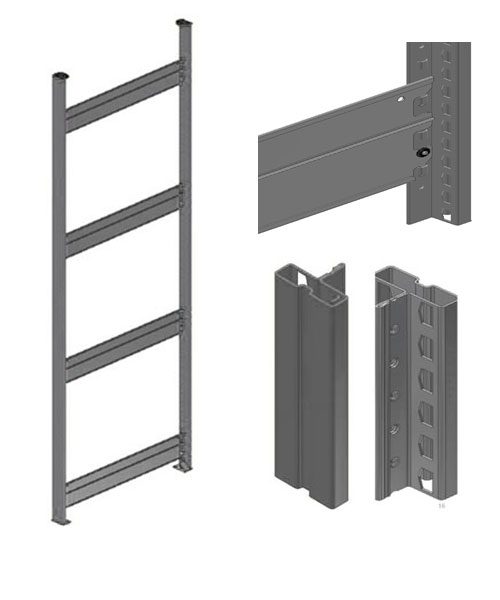

BOLTLESS STEELSHELVING FRAME

Robust boltless shelving frames built for fast installation and long-term reliability.
Perfect for high-capacity storage systems requiring adjustable shelf levels.

Roll-formed T-profile uprights designed for stability and high-load performance.

1” slotted pitch allows flexible vertical adjustment for shelf levels.

Upright profile size: 2” x 1.5”.

Braces hook directly into the upright — no bolting required for assembly .

Components such as turnbuckles, tie plates and back tie rods are included with starter and add-on units.

Designed for quick installation and long-term reliability .

Finished with a high-resistance light-gray powder-coat (RAL7035).

BOLTLESS STEEL SHELVING SHELVES

Space Plus USA’s boltless steel shelf panels are engineered to provide high load capacity, a clean appearance, and fast installation. Roll-formed construction and a 14-bend design deliver exceptional strength while maintaining a low profile for maximum clear height between levels..

Shelves are manufactured from roll-formed steel profiles for consistent strength and rigidity .

14-bend design increases load capacity and minimizes deflection under heavy loads.

Available in standard panel sizes to match our frames, including 36″ and 48″ wide options with 18″ and 24″ deep configurations.

Offered in powder-coated finish to suit both warehouse and commercial environments.

Integrated slots along the shelf allow for easy installation of shelf dividers and accessories.

Shelf panels are secured to the uprights using shelf clips, providing a tight, rattle-free fit and quick adjustability

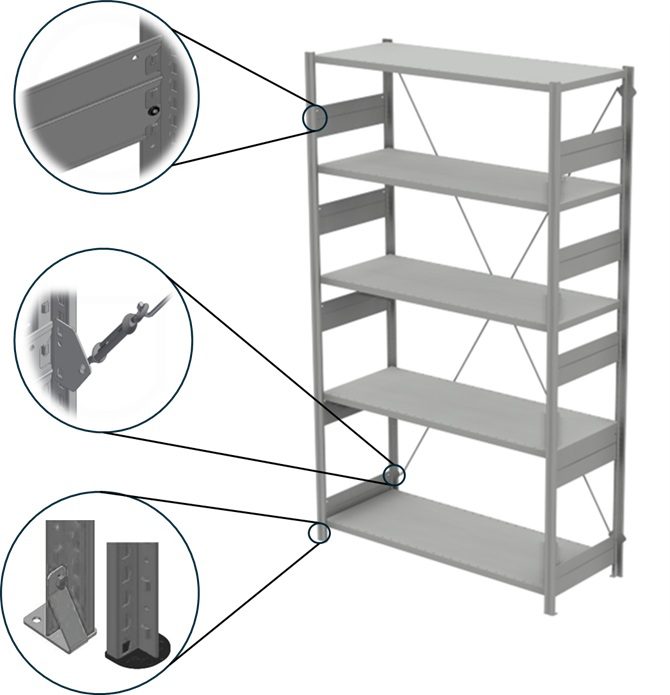

PARTS & ACCESORIES

Space Plus USA’s Boltless Steel Shelving system is engineered for strength, versatility, and fast installation. In addition to the main frames and shelf panels, the system incorporates a wide range of parts and optional accessories that enhance stability, functionality, and customization across different storage applications.

BRACE PINS

Brace pins secure horizontal and diagonal braces to the uprights with a strong mechanical connection. They allow quick assembly and easy reconfiguration whenever needed.

TURNBUCKLES

Turnbuckles allow precise tension adjustment of back tie rods to ensure shelving rows remain aligned. Their adjustable design enhances rigidity in long or high-capacity installations.

FOOTPLATES

Multiple footplate options are available, including standard, heavy-duty, and anchoring styles. Footplates install quickly using simple tools, with anchoring options available for added stability .

OPTIONAL ACCESSORIES:

Wire Mesh Panels (for increased safety or to prevent items from falling).

Aisle Ties (to connect parallel rows).

Side CladdingBack Cladding (Plain).

Shelf DividersGarment Hanger Rods.

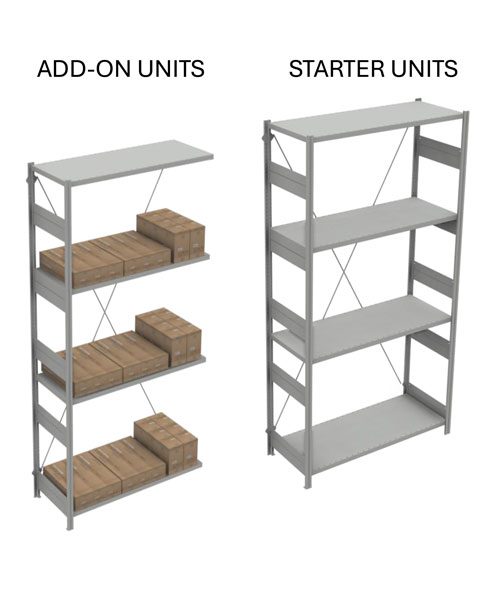

STARTER UNITS & ADD-ON UNITS

Space Plus USA’s Boltless Steel Shelving system is built around a modular configuration consisting of Starter Units and Add-On Units, allowing customers to create storage layouts that grow and adapt to their operational needs

STARTER UNITS

A starter unit is the primary shelving section that begins any row or system layout. It includes two full uprights along with the required braces and components to stand independently .

ADD-ON UNITS

Add-On units connect directly to a Starter Unit by sharing one upright, reducing material costs while maintaining full structural integrity . They can be added on either side of a Starter Unit to extend shelving rows quickly and efficiently .

FLEXIBLE, SCALABLE & EASY TO CONFIGURE

This modular approach makes the system extremely simple to expand, reconfigure, or adapt as storage requirements change. Whether increasing capacity, adjusting layouts, or creating long continuous rows, the Starter + Add-On design offers an efficient, customizable solution for warehouses, offices, retail storage, and industrial environments.
